FEATURES

• Max load power: 2000W
• AC voltage (RMS): 240V
• DC input voltage range: 320V-450V
• Max THD: 5%
• Dimensions: 13in × 2in × 1.5in
• Weight: 2lb

APPLICATIONS

• Off-grid power generation

GENERAL DESCRIPTION

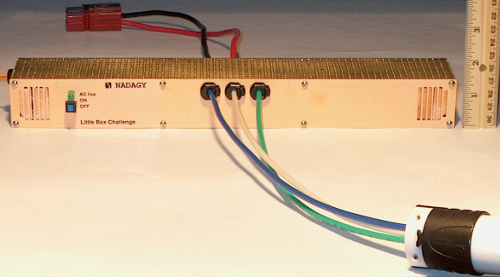

The ND2K240 is a low-profile inverter suitable for local AC power generation. This model is designed for use with appliances in countries with 220/240V power distribution. It requires a DC power source such as a battery bank or a fuel cell capable of delivering the required level of power.
This inverter is based on the Reconfigurable DC Link Technology (pat. pend.) which enables its small size and weight. The output waveform is produced without pulse-width modulation and heavy inductive chokes. Instead, the AC waveform is generated as a staircase approximation of a sinusoidal wave. Up to 37 voltage levels are used in the approximation.
The technology used in ND2K240 can be adopted to a different AC voltage level (such as 120Vac). The power level can also be increased to a higher level as needed. Moreover the AC waveform frequency can be made variable for applications such as frequency drives. The inverter handles full-range of power factor changes including bidirectional power flow, which makes it suitable for motor drive applications including regenerative braking.

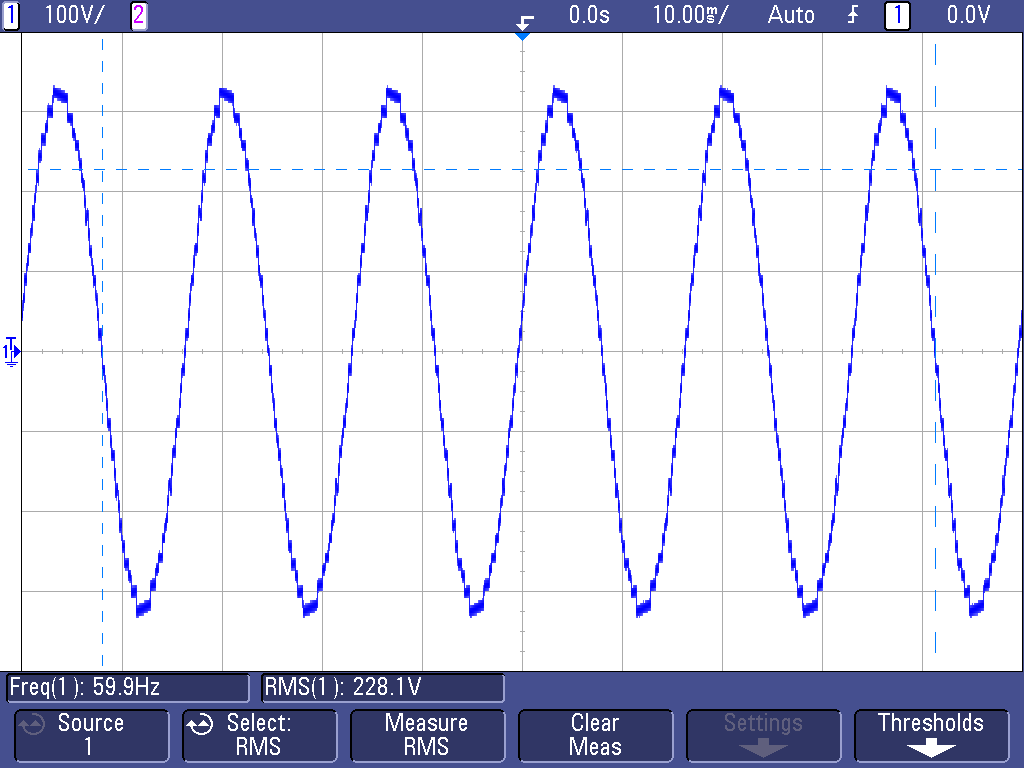

AC Voltage
AcVoltageW.png AcVoltScale.png

AC Current (at 2000W)
AcCurrentW.png AcAmpScale.png
NADAGY is committed to working and learning from the best in the business and all suggestions for a collaborative partnership will be considered.
For licensing opportunities contact:

Nadagy Corporation1
6817 White Oak Ct
Edwardsville, IL-62025
www.nadagy.com

Calvin Walker MSEE, Product Development
314-277-4473

or

Dr. Andy Lozowski, President
618-530-3232
This inverter is based on the Reconfigurable DC Link Technology (pat. pend.) which enables its small size and weight. The output waveform is produced without pulse-width modulation and heavy inductive chokes. Instead, the AC waveform is generated as a staircase approximation of a sinusoidal wave. Up to 37 voltage levels are used in the approximation.
The technology used in ND2K240 can be adopted to a different AC voltage level (such as 120Vac). The power level can also be increased to a higher level as needed. Moreover the AC waveform frequency can be made variable for applications such as frequency drives. The inverter handles full-range of power factor changes including bidirectional power flow, which makes it suitable for motor drive applications including regenerative braking.
AC Voltage
AcVoltageW.png AcVoltScale.png

AC Current (at 2000W)
AcCurrentW.png AcAmpScale.png
NADAGY is committed to working and learning from the best in the business and all suggestions for a collaborative partnership will be considered.
For licensing opportunities contact:

Nadagy Corporation2
6817 White Oak Ct
Edwardsville, IL-62025
www.nadagy.com

Calvin Walker MSEE, Product Development
314-277-4473

or

Dr. Andy Lozowski, President
618-530-3232
